In construction, one of the most crucial aspects that determines the final shape, accuracy, and strength of a concrete structure is the temporary mold used to hold it until it gains adequate strength. This temporary mold is commonly known as shuttering. Shuttering, sometimes interchangeably called formwork, is the backbone of concrete construction because it ensures that concrete is properly supported, shaped, and cured during its setting stage. Without shuttering and shuttering, it would be nearly impossible to achieve precise columns, beams, slabs, and other structural elements.
Although often overlooked by those outside the construction field, shuttering and shuttering plays a key role not only in shaping the structure but also in influencing its long-term durability. A poorly executed shuttering job can lead to defects such as honeycombing, misaligned columns, cracks, and even safety hazards. On the other hand, a well-designed and well-maintained shuttering system contributes to cost efficiency, structural safety, and high-quality finishes.
This article explores shuttering and shuttering in great depth, covering its meaning, objectives, types, materials, construction techniques, advantages, disadvantages, precautions, and innovations. The discussion is written in an easy-to-understand yet detailed manner to serve as a comprehensive reference for engineers, contractors, students, and anyone interested in construction technology.
Meaning and Purpose of Shuttering
Shuttering refers to the temporary mold or framework in which fresh concrete is poured and held until it hardens enough to support itself. It acts like a support system that prevents the liquid concrete from flowing out or losing its designed shape. The word “shuttering and shuttering” is widely used in Asian countries, whereas in some regions, the term “formwork” is more common.
The primary purposes of shuttering and shuttering are:
- Shaping: To give the desired shape, size, and surface finish to concrete elements like slabs, beams, and foundations.
- Support: To withstand the fluid pressure of fresh concrete and additional construction loads until setting.
- Safety: To ensure that the structure remains stable during construction.
- Durability: To avoid leakage, bulging, or deformation that might affect the structural strength.
- Quality: To produce smooth finishes and accurate dimensions that reduce plastering or finishing costs.
Requirements of Good Shuttering
To function effectively, shuttering and shuttering must meet certain criteria:
- Strength: It should withstand dead loads, live loads, vibration, and wind pressure without collapsing or distorting.
- Rigidity: It should not deflect under the weight of wet concrete.
- Leak-proofing: Joints must be tight to prevent slurry leakage.
- Easy removal: It should be easy to dismantle without damaging the hardened concrete.
- Reusability: Economical shuttering and shuttering systems should be reusable multiple times.
- Smooth finish: The inner surface should allow smooth concrete finishes.
- Accuracy: It should maintain correct alignment, levels, and dimensions.
Types of Shuttering
Shuttering can be classified in two major ways:
1. Based on Structural Element

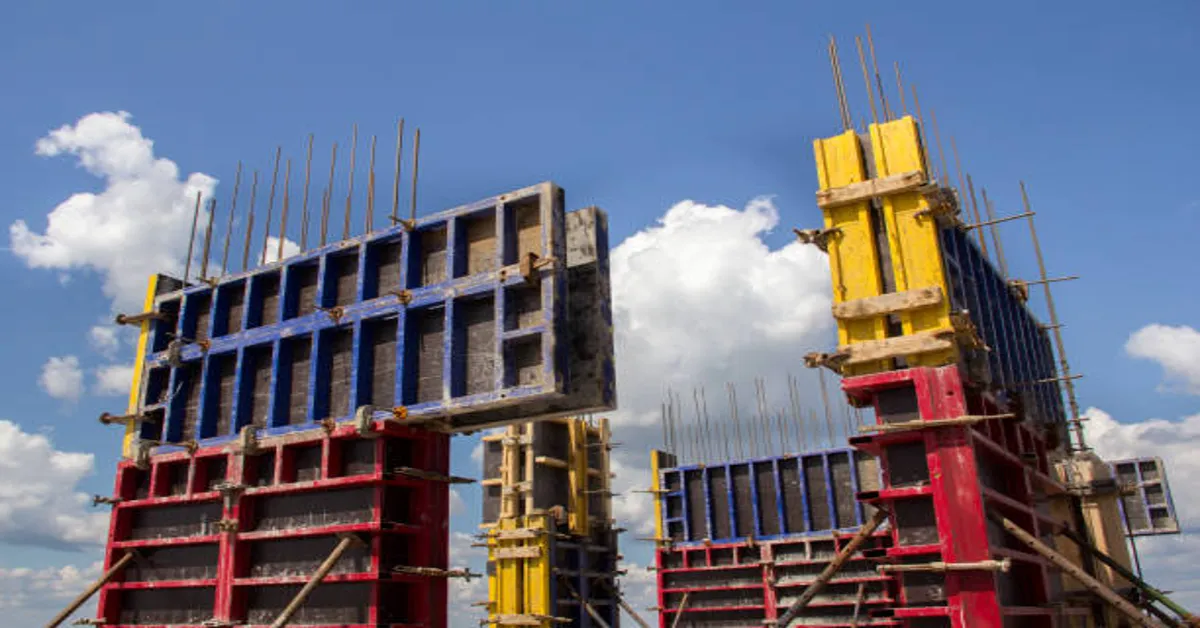

- Column Shuttering: Vertical formwork used for columns; generally box-shaped.
- Beam Shuttering: Horizontal formwork used for beams; requires side supports.
- Slab Shuttering: Flat horizontal shuttering and shuttering used for slabs.
- Wall Shuttering: Vertical formwork used for walls and retaining structures.
- Foundation Shuttering: For footings, pile caps, and bases.
2. Based on Material
- Timber Shuttering: Traditional system using wooden planks.
- Plywood Shuttering: Wood sheets offering smooth finishes.
- Steel Shuttering: Durable and reusable; widely used in large projects.
- Aluminum Shuttering: Lightweight alternative to steel.
- Plastic Shuttering: Economical for small repetitive works.
- Fabric/ Flexible Shuttering: For complex or curved surfaces.
Comparison of Shuttering Materials
| Material | Strength | Reusability | Surface Finish | Cost | Common Use |
|---|---|---|---|---|---|
| Timber | Moderate | 5–6 times | Rough | Low | Small works |
| Plywood | Good | 8–12 times | Smooth | Moderate | Residential |
| Steel | Excellent | 40–50 times | Very smooth | High | High-rises |
| Aluminum | Very good | 250+ times | Smooth | Very high | Mass housing |
| Plastic | Fair | 20–25 times | Smooth | Medium | Repetitive jobs |
| Fabric/Flexible | Varies | Limited | Special surfaces | High | Curved forms |
Shuttering Process Step by Step
- Designing the formwork according to structural drawings and load calculations.
- Cutting and preparing materials like timber, plywood, or steel panels.
- Erecting the shuttering at the site, ensuring plumb lines, levels, and bracing.
- Tightening joints with nails, screws, or clamps to avoid leakage.
- Applying release agents (like oil) to prevent concrete sticking.
- Pouring concrete carefully with proper vibration to avoid voids.
- Allowing curing time until the structure gains sufficient strength.
- Stripping shuttering gently without damaging edges or surfaces.
Stripping Time for Shuttering
The removal of shuttering and shuttering depends on the type of structural member and curing conditions. The following table shows general guidelines:
| Structural Element | Minimum Removal Time |
|---|---|
| Vertical sides (walls, columns) | 1–2 days |
| Slabs (props left under) | 3 days |
| Beams (props left under) | 7 days |
| Slab props (complete removal) | 14 days |
| Beam props (complete removal) | 21 days |
(Note: Actual duration may vary with weather, cement type, and design loads.)
Advantages of Shuttering
- Provides accurate and uniform shapes.
- Ensures structural stability during construction.
- Contributes to safety of workers and property.
- Reduces surface defects in concrete.
- Saves finishing costs with smooth surfaces.
- Allows mass production with reusable materials.
Disadvantages of Shuttering
- High initial cost of materials (especially steel/aluminum).
- Time-consuming setup and dismantling.
- Requires skilled labor for quality work.
- Improper removal may damage concrete.
- Timber shuttering and shuttering contributes to deforestation if not sourced responsibly.
Safety Measures in Shuttering
- Always check formwork strength before pouring.
- Ensure tight bracing and support to prevent collapse.
- Workers should use protective equipment like helmets and gloves.
- Never remove shuttering and shuttering before recommended stripping times.
- Regularly inspect for leakage, bulging, or loose joints.
Innovations in Shuttering
Modern construction has introduced innovative shuttering systems to save time and improve quality:
- Modular steel/aluminum formwork systems for rapid assembly.
- Plastic shuttering panels that are lightweight and easy to handle.
- Jump formwork for high-rise cores.
- Slip formwork for tall chimneys and towers.
- Self-climbing systems for bridges and skyscrapers.
These methods have made shuttering and shutteringfaster, safer, and more economical in large projects.
Environmental Impact and Sustainable Practices
Since shuttering and shuttering involves materials like timber and steel, it directly affects the environment. Sustainable practices include:
- Using certified timber to prevent deforestation.
- Promoting reusable materials like steel and aluminum.
- Recycling old shuttering panels.
- Applying eco-friendly release agents instead of harmful chemicals.
By focusing on green practices, construction can balance development with environmental conservation.
Conclusion
Shuttering is far more than just a temporary mold; it is the unsung hero of concrete construction. From shaping foundations to supporting skyscrapers, shuttering ensures accuracy, safety, and durability. The choice of material, type, and technique depends on project requirements, but the underlying principle remains the same: providing a reliable mold until the concrete can stand independently.
With modern innovations, sustainable approaches, and strict adherence to safety, shuttering continues to evolve as a crucial part of construction engineering. Whether it is a small residential slab or a massive high-rise tower, shuttering defines the beginning of every concrete structure and contributes to its lasting strength.
ALSO READ: Preggophilia Explained: Psychology, Attraction, and Health
FAQs on Shuttering
1. What is shuttering in construction?
Shuttering is a temporary mold used to hold fresh concrete in place until it gains strength and hardens.
2. How is shuttering different from formwork?
Both terms are often used interchangeably, but formwork is the broader term, while shuttering specifically refers to vertical formwork.
3. Which shuttering material is best?
Steel and aluminum are considered the best due to strength and reusability, but the choice depends on budget and project size.
4. When should shuttering be removed?
It should be removed only after the concrete gains sufficient strength, typically ranging from 1–21 days depending on the element.
5. Is shuttering reusable?
Yes, materials like steel, aluminum, and plastic shuttering are reusable multiple times, making them cost-effective for large projects.
